A new bike is born

Sorry for the delay, but for once it wasn't my fault- we've been waiting for a new modem since ours decided to self destruct (one month out of warranty of course) and that's kept me off line.
Didn't keep me out of the shop though!

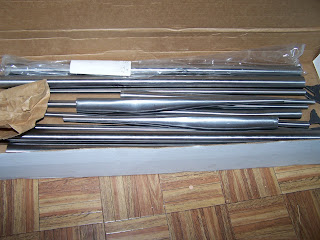

Here we have Israel's new fixed gear just waiting to be cut and welded- all True Temper tubes. The first step is tube inspection- they are cleaned thouroughly inside and out and inspected for defects. Then the butted sections are marked and the bows (all tubes are a tiny bit bowed from the factory) are placed in the right orientation so they won't affect frame alighment down the line. Were talking less than a millimeter here- but it all adds up.
Here are the tubes laying on the frame drwaing so I can mark the cut lines on them- making sure all the butted areas are in the right place for maximum strength.

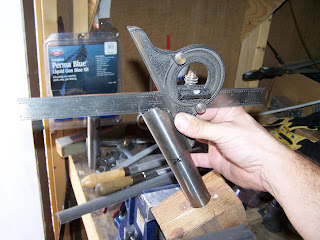

The first miter! 59.5 degrees to be exact.

Fork crown time. The points have been shaped to better match the lugs and a little design is drawn on per Israel's request.

A little lightning carved in and the crown brazed on. This will be a very subtle detail, one of those things you wouldn't see at first, but still pretty cool.

Fork's done!

Next up, custom dropouts for a custom bike.
